PCD-TP110CS: Low Profile PCI Bus to Front-Load PC CardBus Reader/Writer
PCD-RP220CS: Low Profile PCI Bus to Dual Slot Front-Load PC CardBus
PCD-TP110CS/ PCD-RP220CS is a high-performance PCI-to-PC Card Drive Unit
that supports one independent card socket compliant with the 16/32-bit PC Card standard defined in 1997 PC Card Standard.
Provides a rich feature set that makes it the best choice for bridging between PCI and PC Card in desktop computers. Compliant
with the 16-bit PC Card specification defines in PCMCIA Release 2.1 and JEIDA 4.2 and can support any combination of 16-bit
or 32-bit PC Card in the one socket, powered at 5V or 3.3V as required. The host system interface of PCD-TP110CS/PCD-RP220CS
is compliant with the PCI Local Bus specification 2.2. PCD-TP110CS is register set compatible with Intel 82365SL controller
and compatible with ExCA, it enables the PCD-TP110CS/PCD-RP220CS to support almost all of the PC Card applications including:
SRAM card, Linear Flash card, ATA Flash card, Modem card, Wireless LAN card, Panasonic P2 card, and Mobile broadband card.
* PCD-TP110CS/PCD-RP220CS provides one/two front-access PCMCIA / CardBus socket solution for PC.
Local Bus Specification Revision 2.2 compliant.
* PCMCIA 2.1, JEIDA 4.2 compliant. 3.3V, 5.0V, or mixed 3.3V/5.0V
* Intel 82365SL register compatible, ExCA compatible.
* The 3.5" front Drive Unit with built-in
one socket is connected to the PCI Interface Board by using the flat ribbon cable.
* There are one PC card socket
that can be used for Type I / Type II / Type III PC Card in this unit.
* Support IRQ steering (PCMCIA -16Bit), native
driver built in Windows XP.
* Support IRQ steering (PCMCIA -16Bit), optional driver provided in Windows Me or Windows
Supports PC Cards (Type I/II/II)
PCMCIA: 8/16 Bit, 8 MHz, 3.3/5V.
CardBus: 32 Bit,
33 MHz, 3.3 V.
Power Voltage @ PCI DC 3.3V/5V/12V
PC Card Socket DC 3.3 V/5V @1A
Physical Character @ PC Card Drive
Weight (w/o cable)360g
Data Transfer Rate (Max)
CardBus Mode: 132 Mbytes/sec
Operating: 0ºC to 70ºC
Storage: -55ºC to 125ºC
Operating R.H.% 0-70%
Storage R.H. % 0-95%

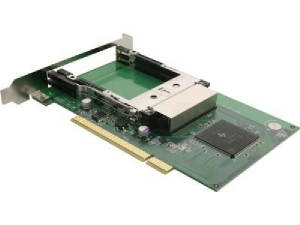

PCI to PCMCIA/CardBus Interface
*cable included, black front panel
